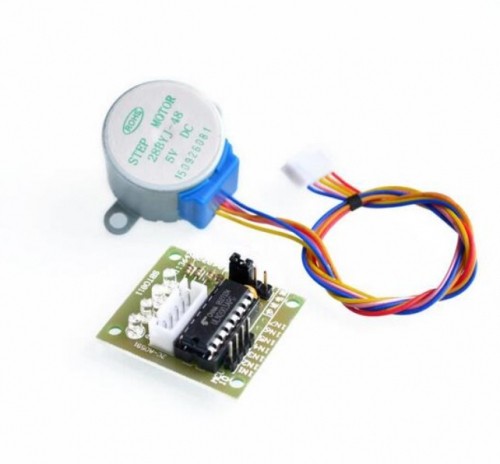

Motor pas cu pas 5V 28BYJ-48 cu driver ULN2003.

Specificatii:

- tensiune de alimentare: 5V DC

- 4 phase

- reductie aprox.: 1/64

- step angle: 5.625 x 1/64

- dimensiune board: 2.9cm x 2.1cm

- dimensiune motor: 3.2cm x 3.2cm

- DC Resistance: 200±7% (25)

- insulation Resistance: >10M (500V)

- dielectric Strength: 600V AC / 1mA / 1s

- insulation Grade: A

- no-load Pull in Frequency: >600Hz

- no-load Pull out Frequency: >1000Hz

- pull in Torque: >34.3mN.m(120Hz)

- detent Torque: >34.3mN.m

- temperature Rise: <40K(120Hz)

- noise: <40dB (120Hz, No load, 10cm)

- board Size: Approx. 29 ×21 mm


Lista de expediere:

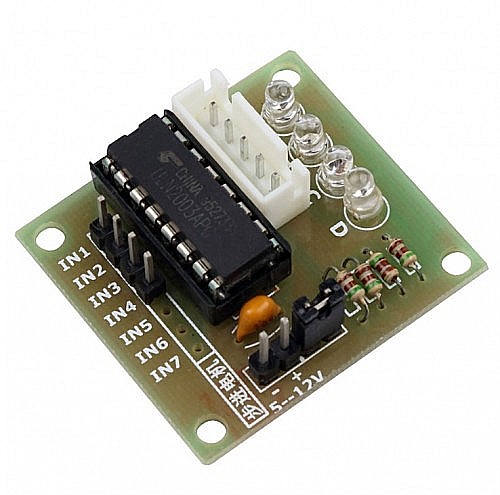

- 1 x Driver ULN2003

- 1 x Stepper Motor 28BYJ-48
