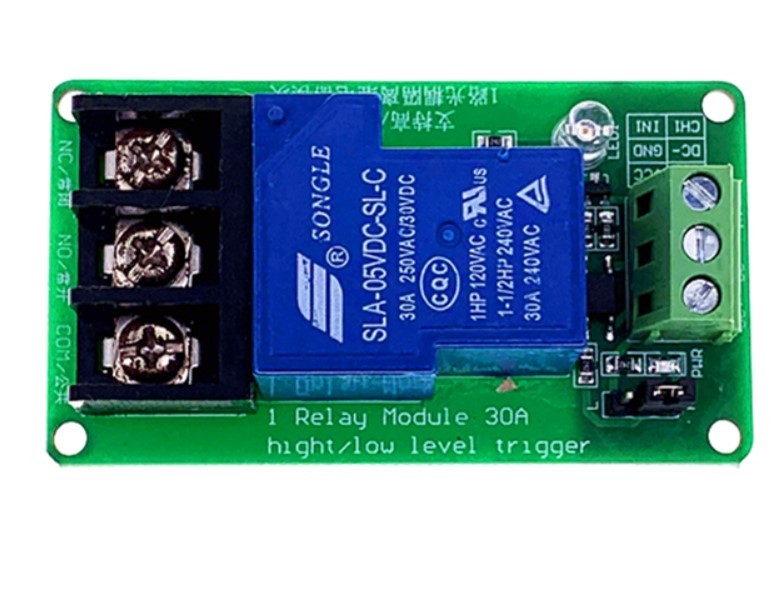

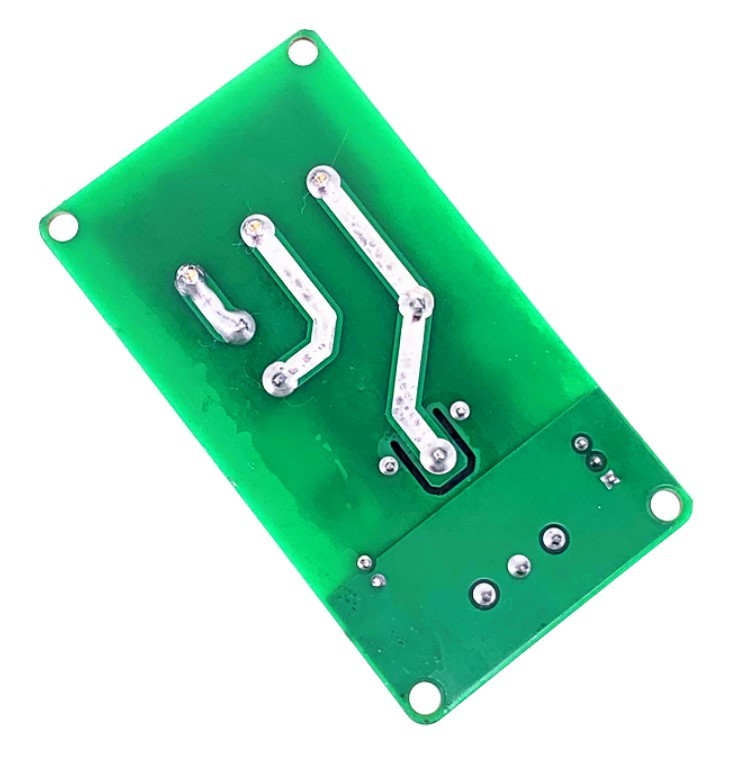

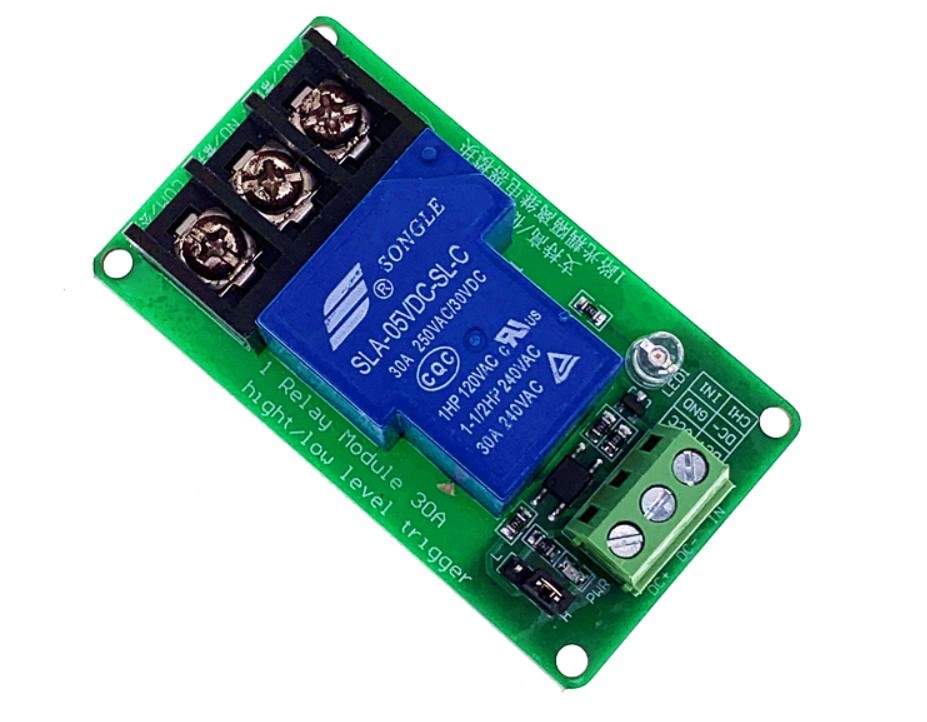

Modul releu 1 canal 30A, izolare optocuplor 12V, suporta declansare inalta si scazuta (high level si low level)

Descriere:

1, modul cu 1 releu 30A, AC 250V / 30A, DC 30V / 30A

2, izolare optocuplor SMD

3, curent de declanșare: 5mA

3, tensiune: 12V

4, modulul poate fi setat printr-un jumper de declanșare high sau low level

5, dimensiune: 72mm * 40mm * 24mm (L * W * H)

6, patru gauri suruburi cu diametru interior de 3,1 mm si distanta de 65 mm*35 mm

Parametri tehnici:

Versiune releu: 12V

Curent de repaus: 5mA

Curent maxim: 80mA

Curent de declanșare 2-4 mA

Functionare:

1. DC+: module DC power supply positive (trigger terminal voltage positive)

2. DC-: module DC power supply negative (trigger terminal negative voltage)

3. IN: signal trigger end (the default trigger voltage is the same as the power supply)

4. High/low edge trigger mode selection, when the jumper is connected with the L terminal, the terminal is low edge trigger and when connected to the H terminal it turns high level

5. Normally closed end (NC): relay normally closed

6. Common (COM): common relay

7. Normally open (NO): The relay is normally open
