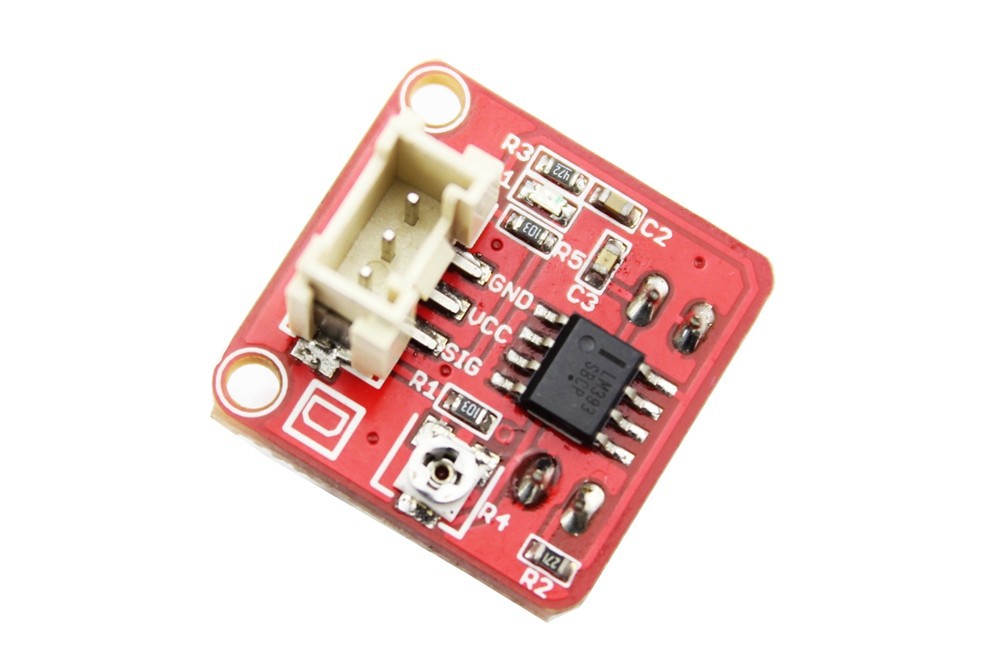

Modul senzor electric tip counter
![Modul senzor electric tip counter [1]](https://gomagcdn.ro/domains3/hobbymarket.ro/files/product/original/modul-senzor-electric-tip-counter-206492.jpg "Modul senzor electric tip counter [1]")
Modul senzor electric tip counter
Metoda de plata:
Durata de livrare: 1-2 zile lucratoare
Cod Produs:
00003502
Ai nevoie de ajutor?
0742881623
- Descriere
- Review-uri (0)
Modul senzor electric tip counter (masoara viteza de rotatie).
The photo electric counter uses a groove IR Optocoupler to detect if there is anything between the IR emitter and IR receiver. With this method, this module can detect the number of obstructions in a given time, to detect the speed of the rotation.
When:
- opto sensor didn't covered, the D0 output logic LOW, the signal indicates LED light,
- opto sensor covered, the D0 output logic HIGH and the LED off, adjust the potentiometer to adjust the sensitivity of the sensor.
When:
- opto sensor didn't covered, the D0 output logic LOW, the signal indicates LED light,
- opto sensor covered, the D0 output logic HIGH and the LED off, adjust the potentiometer to adjust the sensitivity of the sensor.
Features
- Working voltage: 3V - 5V
- LM393 Comparator to make the output signal easy to read
- Nothing detected: Output low, LED on;
- Obstruction between the emitter and receiver: Output high, LED off.
